1. Introduction

1.1 Background

In March 2005, the Project Proponent, Profit Point Enterprises Limited, acquired the development site at Wo Shang Wai in Yuen Long. An Environmental Impact Assessment (EIA) was then carried out and approved under the EIA Ordinance (EIAO), and the Environmental Permit (EP-311/2008) for construction of the comprehensive development in Wo Shang Wai was first granted by EPD on 9 September 2008 and has been subsequently varied, with the current version (EP-311/2008/D) issued by EPD on 20 March 2013.

The Project involves the residential development and associated infrastructure and wetland restoration area and linear landscape area. The construction works under the Environmental Permit commenced on 12 May 2010. The site formation construction works of the Wetland Restoration Area (hereafter WRA) were completed on 15 November 2010, while the 30-month establishment period of the WRA was concluded in August 2012 – this indicated that planting works as scheduled in the approved Wetland Restoration and Creation Scheme (WRCS; Nov 2009) was complete, except along the western and southern boundary where the planting is affected by the existing site boundary and noise barrier, and for which a Variation to Environmental Permit (EP-311/2008/C) to defer planting at the location was approved. The current valid EP (EP-311/2008/D) includes specific mitigation measures to minimise certain identified noise impacts during the operation phase.

Mott MacDonald Hong Kong Ltd. (“MMHK”) has been commissioned by the Contractor, Heng Shung Construction Co. Ltd., to undertake the Environmental Team (ET) services to carry out environmental monitoring and audit (EM&A) for both pre-construction and construction phases of the Proposed Comprehensive Development at Wo Shang Wai, Yuen Long.

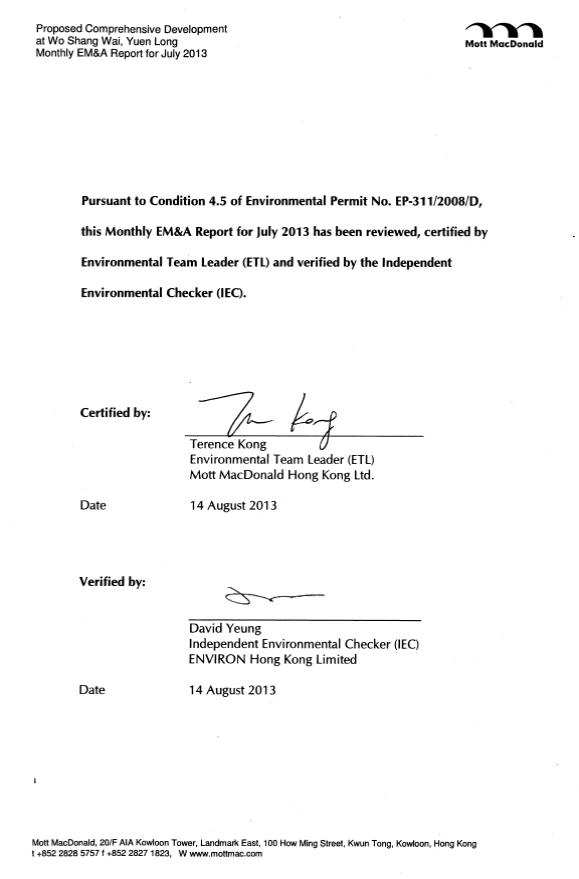

According to the EP Condition 4.5, the monthly EM&A Report shall be submitted to the Director within two weeks after the end of the reporting month. This report summarises the findings during the period from 1 to 31 July 2013.

1.2 Project Organization

The organization chart and lines of communication with respect to the on-site environmental management structure together with the contact information of the key personnel are shown in Appendix A.

1.3 Environmental Status in the Reporting Period

During the reporting period, construction works of the Project undertaken included:

¡ Site formation

¡ Foundation Work

¡ Pond drainage management in the Wetland Restoration Area (to lower the water level and remove unwanted species in the pond)

The Construction Works Programme of the Project is provided in Appendix B. The general layout plan of the Project site is shown in Figure 1.1.

1.4 Summary of EM&A Requirements

The EM&A programme requires environmental monitoring of air quality, noise, water quality, ecology and landscape and visual as specified in the approved EM&A Manual.

A summary of impact EM&A requirements is presented in Table 1.1:

Table 1.1: Summary of Impact EM&A Monitoring Requirements

Parameters	Descriptions	Locations	Frequencies
Air Quality	24-Hour TSP	ASR1, ASR2A, ASR3, ASR4	Once every 6 days
Air Quality	1-Hour TSP	ASR1, ASR2A, ASR3, ASR4	3 times every 6 days
Noise	L_eq, 30min	NSR1, NSR3, NSR5, NSR7	Weekly
Water Quality	Dissolved Oxygen (DO), temperature, pH, suspended solids (SS) and Biological Oxygen Demand (BOD)	MP1 to MP6	3 days per week
Ecology	Birds	Within the Project Area and Assessment Area of 500m	Weekly
	Dragonflies and Butterflies	Within the Project Area and Assessment Area of 500m	Once per month during Mar and Sep to Nov, and twice per month during Apr to Aug
	Herpetofauna	Within the Project Area and Assessment Area of 500m	Once per month during Apr to Nov
	Water quality of Wetland Restoration Area (WRA)	Wetland Restoration Area	After filling of WRA with water, monthly for in situ water quality and every six months (end of wet season and end of dry season) for laboratory testing
	Site Inspections	Within the Project Area and Assessment Area of 500m	Weekly
Landscape and Visual	Auditing of protection of existing trees, the transplanting of existing trees, the creation of new wetland, the planting of new trees and shrubs and other landscape and visual mitigation measures	CM1 to CM10 and OM1 to OM7 within the Project Area	Site inspections once every two weeks during construction phase; once every two months during operational phase

The Environmental Quality Performance Limits for air quality, noise and water quality are shown in Appendix C.

The Event and Action Plan for air quality, noise and water quality are shown in Appendix D.

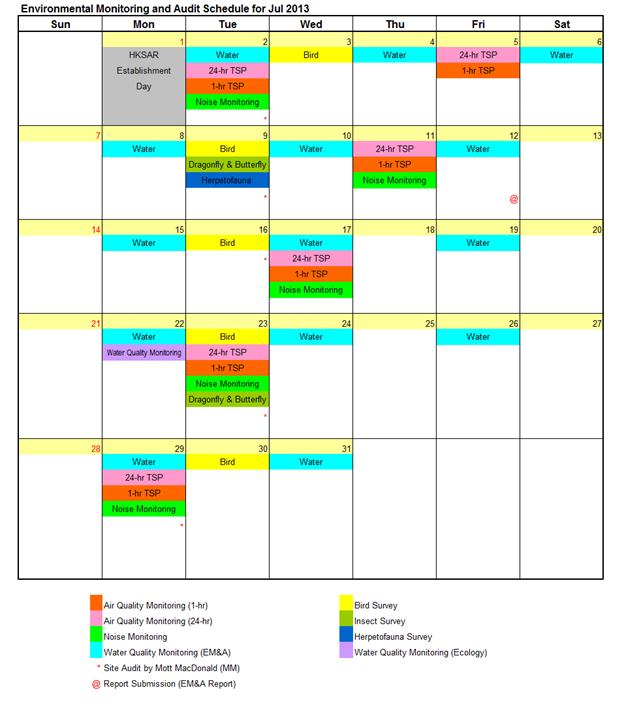

The monitoring schedule for the reporting month is shown in Table 1.2 below:

Table 1.2: Environmental Monitoring and Audit Schedule for July 2013

2. Impact Monitoring Methodology

2.1 Introduction

For air quality, construction noise and water quality, ecology, landscape and visual monitoring methodology, including the monitoring locations, monitoring equipment used, monitoring parameters, and frequency and duration etc., are detailed in this Chapter.

2.2 Air Quality

2.2.1 Monitoring Parameters, Frequency and Duration

In accordance with the EM&A Manual, 1-hour and 24-hour TSP levels monitoring are to be conducted during the construction phase. Table 2.1 summarizes the monitoring parameters, frequency and duration of air quality monitoring.

Table 2.1: Air Quality Monitoring Parameters, Frequency and Duration

Monitoring Stations	Parameter	Frequency and Duration
ASR1, ASR2A, ASR3 & ASR4	24-hour TSP	At least once in every six-days
ASR1, ASR2A, ASR3 & ASR4	1-hour TSP	3 times every six-days

2.2.2 Monitoring Locations

The four air quality monitoring stations were established in the EM&A manual and were slightly adjusted during the baseline monitoring phase. Locations of the agreed air quality monitoring stations are listed in Table 2.2 and as shown in Figure 2.1.

Table 2.2: Air Monitoring Stations

Monitoring Stations	Locations
ASR1	Works Site Boundary
ASR2A	At the rooftop of refuse collection point, which is located at the southwest of the project area
ASR3	At the commercial centre at Palm Springs, which is located at the south of the project area
ASR4	Works Site Boundary

2.2.3 Monitoring Equipments

Continuous 24-hour TSP air quality monitoring is conducted using High Volume Sampler (HVS) (Model: GMWS-2310 Accu-vol). The HVS meets all the requirements of the EM&A Manual. Portable direct reading dust meters were used to carry out the 1-hour TSP monitoring. Table 2.3 summarizes the equipment used in the impact air quality monitoring.

Table 2.3: TSP Monitoring Equipment

Equipment	Model
24-hr TSP monitoring
High Volume Sampler	GMWS 2310 Accu-vol
Calibrator	GMW 25
1-hr TSP monitoring
Portable direct reading dust meter	AM510 SidePak Personal Aerosol Monitor Dust Trak 8520 & 8532

2.2.4 Monitoring Methodology

24-hour TSP Monitoring

Installation

The HVS was installed in the vicinity of the air sensitive receiver. The following criteria were considered in the installation of the HVS.

· A horizontal platform with appropriate support to secure the sampler against gusty wind was provided.

· The distance between the HVS and any obstacles, such as buildings, was at least twice the height that the obstacle protrudes above the HVS.

· A minimum of two metres separation from walls, parapets and penthouse was required for rooftop sampler.

· A minimum of two metres separation from any supporting structure, measured horizontally was required.

· No furnace or incinerator flues or building vent were nearby.

· Airflow around the sampler was unrestricted.

· The sampler has been more than 20 metres from any drip line.

· Permission was obtained to set up the samplers and to obtain access to the monitoring stations.

· A secured supply of electricity is needed to operate the samplers.

Preparation of Filter Papers

· Glass fibre filters, were labelled and sufficient filters that were clean and without pinholes were selected.

· All filters were equilibrated in the conditioning environment for 24 hours before weighing. The conditioning environment temperature was around 25 °C and not variable by more than ±3 °C with relative humidity (RH) < 50 % and was not variable by more than ±5 %. A convenient working RH was 40 %.

Field Monitoring

· The power supply was checked to ensure the HVS works properly.

· The filter holder and the area surrounding the filter were cleaned.

· The filter holder was removed by loosening the four bolts and a new filter, with stamped number upward, on a supporting screen was aligned carefully.

· The filter was properly aligned on the screen so that the gasket formed an airtight seal on the outer edges of the filter.

· The swing bolts were fastened to hold the filter holder down to the frame. The pressure applied should be sufficient to avoid air leakage at the edges.

· The shelter lid was closed and was secured with the aluminium strip.

· The HVS was warmed-up for about 5 minutes to establish run-temperature conditions.

· A new flow rate record sheet was set into the flow recorder.

· The flow rate of the HVS was checked and adjusted at around 1.1 m³/min. The range specified in the EM&A Manual was between 0.6-1.7 m³/min.

· The programmable timer was set for a sampling period of 24 hrs + 1 hr, and the starting time, weather condition and the filter number were recorded.

· The initial elapsed time was recorded.

· At the end of sampling, the sampled filter was removed carefully and folded in half length so that only surfaces with collected particulate matter were in contact.

· It was then placed in a clean plastic envelope and sealed.

· All monitoring information was recorded on a standard data sheet.

· Filters were sent to a HOKLAS accredited laboratory for analysis.

Maintenance and Calibration

· The HVS and its accessories are maintained in good working condition, such as replacing motor brushes routinely and checking electrical wiring to ensure a continuous power supply.

· HVSs were calibrated at two-month intervals.

· Calibration records for HVSs are shown in Appendix E.

1-hour TSP Monitoring

Field Monitoring

The measuring procedures of the 1-hour dust meter are in accordance with the Manufacturer’s Instruction Manual as follows:

· Set POWER to “ON”, push BATTERY button, make sure that the meter’s indicator is in the range with a red line and allow the instrument to stand for about 3 minutes (Then, the air sampling inlet has been capped).

· Push the knob at MEASURE position.

· Push “O-ADJ” button. (Then meter’s indication is 0).

· Push the knob at SENSI ADJ position and set the meter’s indication to S value described on the Test Report using the trimmer for SENSI ADJ.

· Pull out the knob and return it to MEASURE position.

· Push “START” button.

Maintenance and Calibration

· The 1-hour dust meter would be checked at 3-month intervals and calibrated at 1-year intervals throughout all stages of the air quality monitoring.

· Calibration records for direct dust meters are shown in Appendix E.

2.3 Construction Noise

2.3.1 Monitoring Parameters, Frequency and Duration

Following the requirements in the EM&A Manual for noise, noise monitoring has to be carried out during the construction phase. Continuous noise monitoring for the A-weighted levels L_eq, L₁₀ and L₉₀ is undertaken once per every week.

Table 2.4 summarizes the monitoring parameters, frequency and duration of air quality monitoring.

Table 2.4: Noise Monitoring Parameters, Frequency and Duration

Monitoring Stations	Parameter	Frequency and Duration
NSR1, NSR3, NSR5, NSR7	L_eq, L₉₀ & L₁₀	Once every week

2.3.2 Monitoring Locations

The four noise quality monitoring stations were established in the EM&A manual and were slightly adjusted during the baseline monitoring phase. Locations of the agreed noise quality monitoring stations are listed in Table 2.5 and as shown in Figure 2.2.

Table 2.5: Noise Monitoring Stations

Monitoring Stations	Locations	Type of measurement
NSR1	Noise monitoring equipment was set up near the boundary wall at Palm Springs.	Free-field
NSR3	The monitoring station was located next to the guard house at Palm Springs.	Facade
NSR5	The monitoring station was located within the work site boundary.	Free-field
NSR7	The monitoring station was located near the boundary wall of the house of Mai Po San Tsuen.	Free-field

2.3.3 Monitoring Equipments

Integrating Sound Level Meter will be used for noise monitoring. It is a Type 1 sound level meter capable of giving a continuous readout of the noise level readings including equivalent continuous sound pressure level (L_eq) and percentile sound pressure level (L_x). They comply with International Electrotechnical Commission Publications 651:1979 (Type 1) and 804:1985 (Type 1). Table 2.6 summarizes the noise monitoring equipment model being used.

Table 2.6: Noise Monitoring Equipment

Monitoring Stations	Equipment Model
	Integrating Sound Level Meter	Calibrator
NSR1	Rion NL-52	Rion NC-73
NSR3
NSR5
NSR7

2.3.4 Monitoring Methodology

Field Monitoring

· The Sound Level Meter was set on a tripod at a height of at least 1.2 m above the ground.

· Façade and free-field measurements were made at the monitoring locations.

· The battery condition was checked to ensure the correct functioning of the meter.

· Parameters such as frequency weighting, the time weighting and the measurement time were set as follows:

- frequency weighting: A

- time weighting: Fast

- time measurement: 30 minutes intervals (between 07:00 and 19:00)

· Prior to and after each noise measurement, the meter was calibrated using a Calibrator for 94 dB at 1 kHz. If the difference in the calibration level before and after measurement was more than 1 dB, the measurement would be considered invalid has to be repeated after re-calibration or repair of the equipment.

· During the monitoring period, the L_eq, L₁₀ and L₉₀ were recorded. In addition, any site observations and noise sources were recorded on a standard record sheet.

Maintenance and Calibration

· The microphone head of the sound level meter and calibrator is cleaned with soft cloth at quarterly intervals.

· The meter and calibrator are sent to the supplier or HOKLAS laboratory to check and calibrate at yearly intervals.

· Calibration records are shown in Appendix E.

2.4 Water Quality

2.4.1 Monitoring Parameters, Frequency and Duration

In accordance with the requirements in the EM&A Manual for water quality, water quality parameters including Dissolved Oxygen (DO), temperature, pH, turbidity, suspended solids (SS) and Biochemical Oxygen Demand (BOD) have to be monitored at designated monitoring stations during construction of the Project. DO, temperature and pH were measured in-situ whereas SS and BOD were analysed in a laboratory. The measurements should be taken at all designated monitoring stations, three days per week. The interval between any two sets of monitoring was not less than 36 hours. Table 2.7 summarizes the monitoring parameters, frequency and duration of water quality monitoring.

Table 2.7: Water Quality Monitoring Parameters, Frequency and Duration

Monitoring Stations	Parameter	Frequency and Duration
MP1, MP2, MP3, MP4, MP5 & MP6	DO, temperature, pH, SS, turbidity, BOD	Three days every week

2.4.2 Monitoring Locations

The six water quality monitoring stations were established in the EM&A manual. Locations of the agreed water quality monitoring stations are listed in Table 2.8 and as shown in Figure 2.3.

Table 2.8: Water Quality Monitoring Stations

Monitoring Stations	Easting	Northing
MP1	838 730.50	822 862.25
MP2	838 933.26	823 247.41
MP3	839 107.17	823 596.84
MP4	839 286.14	823 638.55
MP5	839 134.35	823 722.99
MP6	839 063.02	823 842.25

2.4.3 Monitoring Equipment

The Water Quality Monitoring Equipment and Analytical Methods applied to Water Quality Samples are given in Table 2.9 and Table 2.10 respectively. Details of which are discussed below.

Table 2.9: Water Quality Monitoring equipment

Equipment	Model	Equipment/Serial Number
Conductivity, Dissolved oxygen, pH, Salinity and Temperature Measuring Meter	YSI Professional Plus	09K100735
Turbidity Meter	Hach 2100Q	12010C015757
Global Positioning System (GPS)	Garmin eTrex Vista	ENO 007

Table 2.10: Analytical Methods applied to Water Quality Samples

Determinant, unit	Standard Method
Total Suspended Solids, mg/L	In house method based on APHA 2540D; ALS Method Code: EA-025
Biochemical Oxygen Demand (BOD), mg/L	In house method based on APHA 5210B; ALS Method Code: EP-030

All in-situ monitoring instruments were checked, calibrated and certified by a laboratory accredited under HOKLAS or any other international accreditation scheme before use.

Dissolved Oxygen (DO), temperature and pH measuring equipment

A portable, weatherproof multiparameter instrument (YSI Professional Plus) was used in the monitoring. It can be capable for measuring dissolved oxygen (DO), pH, and temperature simultaneously with the following limits:

· a dissolved oxygen level in the range of 0-50 mg/L and 0-500 % saturation;

· a temperature of -5 to 45 degree Celsius; and

· pH value of 0-14 with 0.1 as the base unit.

Turbidity Measurement Instrument

Portable and weatherproof turbidity meter (HACH model 2100Q) was used during impact monitoring. It has a photoelectric sensor capable of measuring turbidity between 0-1000 NTU. Response of the sensor was checked with certified standard turbidity solutions before the start of measurement.

Global Positioning System

A hand-held GPS navigator (Garmin eTrex Vista) was used to identify the designated monitoring stations prior to water sampling.

Suspended Solids and BOD Measurements (Sample Containers and Storage)

Water samples for SS analysis were stored in high density polythene bottles with no preservative added, packed in ice (cooled to 4^oC without being frozen), delivered to the laboratory, and analysed as soon as possible after collection. Analysis was carried out in a HOKLAS accredited laboratory.

Detection Limit

The limits of detection for the in-situ and laboratory measurements are shown in Table 2.11.

Table 2.11: Detection Limits for Water Quality Determinants

Determinant	Limit of Detection
Dissolved Oxygen	0.1 mg/L
Temperature	0.1 degree Celsius
pH	0.01 unit
Turbidity	0.1 NTU
Suspended Solids	1 mg/L
BOD	2 mg/L

2.4.4 Monitoring Methodology

In situ measurement

All pH meters, DO/temperature meters had been checked and calibrated prior to use. Standard buffer solution of at least two pH levels (either pH 4 and pH 7, or pH 7 and pH 10) had been used for calibration of the instrument before and after use.

DO meters had been calibrated by a laboratory accredited under HOKLAS or any other international accreditation scheme, and subsequently re-calibrated at three-monthly intervals throughout all stages of the water quality monitoring. Responses of sensors and electrodes had been checked with certified standard solutions before each use. Wet bulb calibrations for all DO meters had been carried out before measurement at each monitoring location. For the on site calibration of field equipment, BS 127:1993, "Guide to field and on-site test methods for the analysis of waters" had been observed.

Measurements shall be at three water depths, namely, 1m below water surface, mid-depth and 1m above stream bed/pond bed, except where the water depth less that 6m, the mid-depth station maybe omitted. Should the water depth be less than 3m, only the mid-depth station will be monitored.

Replicates in-situ measurements and samples collected from each independent monitoring event are required for all parameters to ensure a robust statistically interpretable dataset.

Water Samples Preparation and Analysis

For collection of water sampling within the water courses, a 500ml clean plastic beaker was used. After collection, the water samples were stored in high-density polythene bottles. The sample container was rinsed with a portion of the water sample. The water sample was then transferred to the container, labelled with a unique sample ID and sealed with a screw cap. The water samples were stored in a cool box maintained at 4^oC. The water samples were then delivered to a local HOKLAS-accredited laboratory (ALS) on the same day for analysis.

The testing methods of testing parameters as recommended by EIA or required by EPD, with the QA/QC results are in accordance with the requirement of HOKLAS or international accredited scheme.

The calibration certificates for equipments used for in-situ monitoring of water quality are attached in Appendix E.

2.5 Ecology

2.5.1 Monitoring Parameters, Frequency and Duration

Target species and certain other fauna will be monitored within the Project Area and Assessment Area during the wetland and residential construction phase. This will be important to ensure that any unexpected events or impacts either on- or off-site are quickly identified so that remedial action can be taken. The groups to be monitored and frequency of monitoring are shown in Table 2.12.

Table 2.12: Summary of Construction Phase Ecological Monitoring for the Wo Shang Wai Wetland Restoration Area (WRA)

Species / Parameter	Construction Phase Ecological Monitoring
Birds	Weekly (including Assessment Area).
Dragonflies and Butterflies	Once per month during March and September to November, and twice per month during April to August.
Herpetofauna	Once per month during April to November.
Water Quality	After filling of WRA with water, monthly for in situ water quality and every six months (end of the wet season and end of the dry season) for laboratory testing.
Site Inspections	Weekly.

2.5.2 Monitoring Locations and Methodology

Ecological monitoring locations during construction phase are shown in Figure 4.1 and the methodology for ecological monitoring is detailed in Section 4.

2.6 Landscape and Visual

2.6.1 Monitoring Parameters, Frequency and Duration

All measures undertaken by both the Contractor and the specialist Landscape Sub-Contractor during the construction phase and first year of the operational phase shall be audited by a Registered Landscape Architect, as a member of the ET, on a regular basis to ensure compliance with the intended aims of the measures. Site inspections should be undertaken at least once every two weeks throughout the construction period and once every two months during the operational phase.

The broad scope of audit is detailed below but should also be undertaken with reference to the more specific checklist provided in Table 2.13 below. Operational phase auditing will be restricted to the last 12 months of the establishment works of the landscaping proposals and thus only the items below concerning this period are relevant to the operational phase.

· The extent of the agreed works area should be regularly checked during the construction phase. Any trespass by the Contractor outside the limit of the works, including any damage to existing trees and woodland shall be noted;

· The progress of the engineering works should be regularly reviewed on site to identify the earliest practical opportunities for the landscape works to be undertaken;

· All existing vegetation, streams and other features within the study area which are not directly affected by the works are retained and protected;

· The methods of protecting existing vegetation proposed by the Contractor are acceptable and enforced;

· Preparation, lifting transport and re-planting operations for any transplanted trees;

· The layout, design and construction of buildings conforms to requirements specified in the EIA report;

· All landscaping works are carried out in accordance with the EIA recommendations and with specifications;

· The planting of new trees, shrubs, groundcover, climbers, grasses and other plans, together with the replanting of any transplanted trees are carried out properly and within the right season;

· All necessary horticultural operations and replacement planting are undertaken throughout the Establishment Period to ensure the healthy establishment and growth of both transplanted trees and all newly establishment plants.

Table 2.13: Construction and Operation Phase Audit Checklist

Area of Works	Items to be Monitored
Works Area	Check the extent of the Works to ensure that the Works Area is not exceeded
Protection of all trees and woodland blocks to be retained	Identification and demarcation of trees / vegetation to be retained, erection of physical protection (e.g. fencing), monitoring against possible incursion, physical damage, fire, pollution, surface erosion, etc.
Streams	Ensure no run-off into existing streams
Clearance of existing vegetation	Identification and demarcation of trees / vegetation to be cleared, checking of extent of works to minimize damage, monitoring of adjacent areas against possible incursion, physical damage, fire, pollution, surface erosion, etc.
Transplanting of trees	Identification and demarcation of trees / vegetation to be transplanted, monitoring of extent of pruning / lifting works to minimize damage, timing of operations implementation of all stages of preparatory and translocation works, and maintenance of transplanted vegetation, etc.
Topsoil stripping	Ensuring existing topsoil is stripped and stored under recognized good practice and is hydroseeded and regularly turned to prevent anaerobic conditions
New buildings	Ensure that building finishes accord with mitigation proposals with regard to colour and albedo.
Boundaries	Ensuring hoarding are erected as required
Noise Barrier	Ensure noise barrier design accords with the mitigation proposals with regard to location, materials and finishes.
Night-time lighting	Ensuring night-time lighting is directional, hooded and shielded away from VSRs
Plant supply	Monitoring of operations relating to the supply of specialist plant material (including the collecting, germination and growth of plants from seed) to ensure that plants will be available in time to be used within the construction works.
Landscape and wetland treatments generally	Check that wetland, and hard / soft landscape designs conform to intent of mitigation measures and agreed designs
Soiling, planting, etc.	Monitoring of implementation and maintenance of soiling and planting works against possible incursion, physical damage, fire, pollution, surface erosion, etc.
Establishment Works	Monitoring of implementation of maintenance operation during Establishment Period

2.6.2 Monitoring Locations

The monitoring locations should check against the mitigation measures proposed under the approved Environmental Impact Assessment, which are summarised as follows:

Table 2.14: Proposed Construction Phase Mitigation Measures

ID No.	Landscape and Visual Mitigation Measure
CM1	The construction area and contractor’s temporary works areas should be minimised to avoid impacts on adjacent landscape.
CM2	Screening of construction works by hoardings/noise barriers around Works area in visually unobtrusive colours, to screen Works.
CM3	Reduction of construction period to practical minimum.
CM4	Topsoil, where identified, should be stripped and stored for re-use in the construction of the soft landscape works, where the soil material meets acceptable criteria and where practical. The Contract Specification shall include storage and reuse of topsoil as appropriate.
CM5	Hydroseeding or sheeting of soil stockpiles with visually unobtrusive material (in earth tone).
CM6	Advance screen planting to noise barriers.
CM7	Control night-time lighting and glare by hooding all lights.
CM8	Ensure no run-off into streams adjacent to Project Area.
CM9	Protection of existing trees on boundary of project area shall be carefully protected during construction. Detailed Tree Protection Specification shall be provided in the Contract Specification. Under this specification, the Contractor shall be required to submit, for approval, a detailed working method statement for the protection of trees prior to undertaking any works adjacent to all retained trees, including trees in contractor’s works areas. (Tree protection measures will be detailed at S16 and Tree Removal Application stage).
CM10	Trees unavoidably affected by the works shall be transplanted where practical. Trees should be transplanted straight to their destinations and not held in a nursery. A detailed Tree Transplanting Specification shall be provided in the Contract Specification, if applicable. Sufficient time for necessary tree root and crown preparation periods shall be allowed in the project programme.

Table 2.15: Proposed Operation Phase Mitigation Measures

ID No.	Landscape Mitigation Measure
OM1	Compensatory Tree Planting for all felled trees shall be provided to the satisfaction of relevant Government departments. Required numbers and locations of compensatory trees shall be determined and agreed separately with Government during the Tree Felling Application process under ETWBTC 3/2006.
OM2	A continuous belt of screen planting along southern perimeter of project area with fast growing tree species. At least 450 trees capable of reaching a height > 10m within 10 years should be planted. Planting of the belt of trees shall be carried out as advance works ahead of other site formation and building works.
OM3	Maximise soft landscape and amenity water bodies in residential areas of the development. Approximately 750 trees (of Heavy Standard size) should be planted. Where space permits, roadside berms should be created. Street trees should be of species that reach a mature height of no less than 15m.
OM4	Maximise freshwater habitat wetland creation consistent with achieving other parameters. Minimum 4.74 ha to be provided. Wetlands must have natural edge profiles with >1m wide emergent zone. No access to the wetland by residents and all wetlands must be screened from residential development by a continuous tree screen at interface with residential development or earth mounding such that disturbance is minimised. Implementation of the wetland shall be carried out as advance works.
OM5	Use appropriate (visually unobtrusive and non-reflective) building materials and colours in built structures.
OM6	During detailed design, refine building layout to create a min. 10m wide gap between buildings north of Wo Shang Wai pond and also two min. 10m wide gaps in the row of buildings adjacent to Royal Palms.
OM7	Streetscape elements (e.g. paving, signage, street furniture, lighting etc.) shall be sensitively designed in a manner that responds to the local context, and minimises potential negative landscape and visual impacts. Lighting units should be directional and minimise unnecessary light spill.

3. Monitoring Results

3.1 Impact Monitoring Schedule

Impact monitoring for air quality (dust), noise and water quality due to the construction work were undertaken during the reporting month in compliance with the EM&A manual in the reporting period. Regular site inspections were carried out on 2, 9, 19, 23 and 29 July 2013 in the reporting month to assess the compliance with environmental requirements.

3.2 Results of Impact Monitoring

3.2.1 Air Quality Monitoring

3.2.1.1 1-hr TSP

Results of 1-hour TSP at the four monitoring locations are summarised in Table 3.1. Graphical plots of the monitoring results are shown in Appendix F. The weather conditions in the reporting period are provided in Appendix G.

Table 3.1: Summary of 1-hour TSP Monitoring Results

Monitoring Date	Start Time	1-hr TSP (μg/m³)			Range (μg/m³)	Action Level (μg/m³)	Limit Level (μg/m³)
Monitoring Date	Start Time	1^st Result	2^nd Result	3^rd Result	Range (μg/m³)	Action Level (μg/m³)	Limit Level (μg/m³)
ASR1
02-Jul-13	13:27	102	94	83	82 - 113	378		500
05-Jul-13	14:08	82	90	104
11-Jul-13	13:20	86	105	93
17-Jul-13	13:36	104	84	113
23-Jul-13	13:31	86	112	97
29-Jul-13	13:17	86	93	104
ASR2A
02-Jul-13	12:52	86	94	100	86 - 114	357		500
05-Jul-13	12:49	90	86	102
11-Jul-13	12:46	114	96	102
17-Jul-13	12:56	89	102	111
23-Jul-13	12:52	104	93	111
29-Jul-13	12:48	104	112	96
ASR3
02-Jul-13	12:36	90	106	82	82 - 114	358		500
05-Jul-13	12:35	89	102	93
11-Jul-13	12:33	104	112	93
17-Jul-13	12:39	105	98	114
23-Jul-13	12:37	86	102	93
29-Jul-13	12:31	86	104	93
ASR4
02-Jul-13	13:20	89	112	120	89 - 122	372		500
05-Jul-13	13:49	112	106	98
11-Jul-13	13:12	113	122	105
17-Jul-13	13:25	93	116	104
23-Jul-13	13:24	109	122	97
29-Jul-13	13:09	86	112	122

3.2.1.2 24-hr TSP

Results of 24-hour TSP at the four monitoring locations are summarised in Table 3.2. Graphical plots of the monitoring results are shown in Appendix F. The weather conditions in the reporting period are provided in Appendix G.

Table 3.2: Summary of 24-hour TSP Monitoring Results

Monitoring Date	Monitoring Results (μg/m³)	Range (μg/m³)	Action Level (μg/m³)	Limit Level (μg/m³)
ASR1
02-Jul-13	78	78 - 85	226	260
05-Jul-13	81
11-Jul-13	82
17-Jul-13	85
23-Jul-13	80
29-Jul-13	79
ASR2A
02-Jul-13	79	78 - 90	213	260
05-Jul-13	90
11-Jul-13	87
17-Jul-13	81
23-Jul-13	78
29-Jul-13	89
ASR3
02-Jul-13	80	80 - 99	205	260
05-Jul-13	99
11-Jul-13	85
17-Jul-13	81
23-Jul-13	80
29-Jul-13	86
ASR4
02-Jul-13	83	81 - 94	237	260
05-Jul-13	86
11-Jul-13	94
17-Jul-13	84
23-Jul-13	81
29-Jul-13	86

No exceedance of 1-hour and 24-hour TSP (Action or Limit Level) was recorded in the reporting period.

3.2.2 Construction Noise Monitoring

The construction noise monitoring results are summarized in Table 3.3. Graphical plots of the monitoring data are shown in Appendix F. The weather conditions in the reporting period are provided in Appendix G.

Table 3.3: Summary of Construction Noise Monitoring Results

Monitoring Date	Start Time	Mean & Range of Noise Levels, dB(A)			Limit Level for L_eq (dB)
Monitoring Date	Start Time	L_eq	L₁₀	L₉₀	Limit Level for L_eq (dB)
NSR1					> 75
02-Jul-13	15:10	57	59	55
11-Jul-13	14:56	55	58	51
17-Jul-13	15:11	56	59	51
23-Jul-13	15:49	56	58	53
29-Jul-13	14:45	55	57	52
NSR3
02-Jul-13	15:50	57	59	55
11-Jul-13	15:37	57	60	50
17-Jul-13	15:54	55	58	45
23-Jul-13	16:29	57	59	51
29-Jul-13	15:28	57	58	51
NSR5
02-Jul-13	13:32	59	61	54
11-Jul-13	13:23	59	63	57
17-Jul-13	13:41	57	60	54
23-Jul-13	13:35	57	61	54
29-Jul-13	13:22	59	62	56
NSR7
02-Jul-13	14:22	65	68	59
11-Jul-13	14:09	63	67	58
17-Jul-13	14:20	63	66	60
23-Jul-13	14:31	65	68	62
29-Jul-13	14:02	63	66	61

No exceedance (Action/Limit Level) of construction noise was recorded in the reporting period.

3.2.3 Water Quality Monitoring

The water quality monitoring results are summarized in Table 3.4. Graphical plots of the monitoring data are shown in Appendix F. The weather conditions in the reporting period are provided in Appendix G.

Table 3.4: Summary of Water Quality Monitoring Results

Monitoring Date	Temp (^oC)	pH	Dissolved Oxygen (DO) (mg/L)	DO (%)	Turbidity (NT)	BOD (mg/L) ⁽¹⁾	Suspended Solids (mg/L)
MP3
02/07/2013	30.0	7.3	5.4	72.3	33.4	5	24
04/07/2013	32.3	7.6	4.3	59.9	40.2	4	37
06/07/2013	31.7	7.5	4.1	55.4	19.2	5	15
08/07/2013	32.3	7.4	5.0	68.9	25.3	5	23
10/07/2013	31.0	7.4	5.3	71.8	35.9	8	36.5
12/07/2013	32.1	7.3	5.1	67.8	38.4	6	37.5
15/07/2013	31.1	7.3	4.1	55.0	57.2	7	33.5
17/07/2013	29.6	7.3	5.3	69.5	18.0	5	15
19/07/2013	30.1	7.3	7.0	93.1	38.0	8	29
22/07/2013	29.8	7.3	4.1	54.4	36.0	9	31
24/07/2013	29.2	7.3	3.7	48.4	31.1	6	26.5
26/07/2013	28.0	7.3	3.9	50.3	25.5	5	24.5
29/07/2013	31.7	7.6	7.5	102.4	19.1	5.5	14
31/07/2013	31.6	7.6	4.3	58.6	39.1	7	34.5
Action Level	-	<5.5 or >7.5	<6.85	-	>64	-	>65
Limit Level	-	<4.0 or >8.0	<6.65	-	>67	-	>66

MP4
02/07/2013	29.0	7.4	4.3	55.4	41.9	8	20.5
04/07/2013	32.3	7.5	4.9	67.6	18.0	3.5	21
06/07/2013	31.1	7.5	5.7	76.2	17.7	4.5	19
08/07/2013	32.6	7.5	4.8	66.7	26.7	5.5	23.5
10/07/2013	29.9	7.5	6.2	82.2	54.6	4	56
12/07/2013	30.5	7.5	6.1	83.0	32.4	5.5	38
15/07/2013	29.9	7.5	6.4	85.1	59.1	9	67
17/07/2013	29.1	7.5	6.3	81.7	46.1	5	33.5
19/07/2013	29.7	7.4	4.8	63.3	60.7	7	54
22/07/2013	29.3	7.5	4.2	56.0	51.1	4	43
24/07/2013	27.9	7.5	4.2	54.0	43.1	5	43.5
26/07/2013	26.7	7.5	3.9	48.9	59.4	3	47.5
29/07/2013	31.6	7.5	4.4	59.6	25.0	2	20.5
31/07/2013	31.5	7.5	5.4	74.0	60.8	4	50
Action Level	-	<5.5 or >7.5	<3.91	-	>60	-	>50
Limit Level	-	<4.0 or >8.0	<3.82	-	>64	-	>53

MP5
02/07/2013	28.4	7.4	5.7	73.8	27.6	3	28.5
04/07/2013	32.4	7.4	7.8	108.3	21.3	2	28.5
06/07/2013	31.0	7.5	7.7	103.8	30.6	3	30
08/07/2013	32.8	7.5	10.5	146.9	26.4	6	36.5
10/07/2013	29.4	7.5	6.8	89.9	28.8	4.5	32
12/07/2013	30.7	7.6	6.9	93.0	26.5	7	34.5
15/07/2013	30.0	7.6	9.7	129.6	30.7	11.5	74.5
17/07/2013	29.0	7.6	7.2	95.5	53.3	7	52
19/07/2013	30.8	7.5	7.7	103.8	33.2	7.5	30
22/07/2013	29.0	7.6	5.3	68.5	33.9	3	27.5
24/07/2013	27.3	7.5	4.3	54.3	28.1	5	26
26/07/2013	28.0	7.6	6.1	76.6	80.2	3	51.5
29/07/2013	31.8	7.6	4.7	65.0	41.1	4.5	38.5
31/07/2013	31.1	7.6	7.1	96.4	59.3	4	54
Action Level	-	<5.5 or >7.5	<4.13	-	>81	-	>66
Limit Level	-	<4.0 or >8.0	<3.87	-	>84	-	>69

MP6
02/07/2013	27.9	7.5	6.0	76.9	31.1	3	31
04/07/2013	31.3	7.4	7.7	105.3	32.6	2.5	46
06/07/2013	29.4	7.5	6.9	91.2	16.7	2.5	22.5
08/07/2013	32.3	7.5	10.6	146.6	20.0	6	19.5
10/07/2013	29.2	7.5	8.7	114.6	27.1	6	40
12/07/2013	30.4	7.6	8.6	111.1	23.9	4.5	32.5
15/07/2013	29.3	7.6	9.4	123.1	49.0	11.5	57
17/07/2013	28.6	7.6	6.2	80.2	62.5	4	65.5
19/07/2013	30.5	7.5	7.0	93.3	40.7	4.5	31
22/07/2013	28.4	7.6	5.6	72.2	31.9	5.5	22.5
24/07/2013	27.0	7.6	5.8	73.0	51.0	4.5	57.5
26/07/2013	26.7	7.6	6.1	76.2	86.9	3.5	74
29/07/2013	30.5	7.6	6.0	78.6	42.1	3	40.5
31/07/2013	31.0	7.6	6.7	90.2	43.5	3.5	40.5
Action Level	-	<5.5 or >7.5	<4.61	-	>94	-	>75
Limit Level	-	<4.0 or >8.0	<4.52	-	>96	-	>75

Notes:

(1) “<2 “ : BOD value is too low to indicate (<2mg/L).

(2) Values Bold indicate Action Level exceedance.

(3) Values Underlined and Bold indicate Limit Level exceedance.

Exceedance Investigation and Findings

During July 2013, Action Level exceedance of pH was observed at MP3, MP5 and MP6, while exceedances of DO, turbidity and/or SS were observed at MP3 to MP5 but not observed at MP6. DO exceedance was observed 12 times at MP3 and once at MP4. SS and/or turbidity exceedance was recorded on four monitoring dates at MP4 and one monitoring date at MP5 during the reporting month.

The Event and Action Plan in Appendix D was followed under these cases of exceedances.

From investigation, construction activities during the period of exceedance included mainly site formation and foundation work, as well as pond drainage management in the Wetland Restoration Area (to lower the water level and remove unwanted species in the pond). It was observed that the Contractor has implemented water quality mitigation measures as recommended in the EIA report, including the provision of temporary drainage facility and associated treatment facility. Sand bags are in place in the temporary drainage channel to enhance the desilting efficiency. The Contractor further enhanced the water quality mitigation measures by erecting several segments of rock bunds and installing a barrier at the discharge outlet to desilt and divert site runoff to sedimentation tanks and wastewater treatment facilities (Aquased), which will ensure all site runoff is treated to satisfactory quality before discharging into the northern ditches.

Exceedances of pH and DO at MP3

During the reporting month at MP3, exceedance of the Action Level of pH was observed three times, while Action/Limit Level exceedance of DO was recorded on 12 monitoring dates at MP3. Also, Action/Limit Level exceedance of turbidity and/or SS was not observed. As understood, the fish pond near the site (represented by MP3) was being separated from the construction site by the WRA since November 2010, so the exceedances were not considered to be related to the construction activities. The exceedances of DO may be due to external factors such as pond fish culture activities which were out of the control of the project.

Exceedances of pH, DO, turbidity and SS at MP4 to MP6

During the reporting month, exceedance of the Action/Limit Level of pH was observed at MP5 and MP6 but not observed at MP4. Meanwhile, Action/Limit Level of DO was exceeded once at MP4, but not exceeded at MP5 and MP6. Action/Limit Level exceedance of turbidity was observed on at MP4 on 19 and 31 July 2013, but not observed at MP5 and MP6. Action/Limit Level exceedance of SS was observed at MP4 on 10, 15 and 19 July 2013 and at MP5 on 15 July 2013, but not observed at MP6.

From Hong Kong Observatory (HKO) records, total rainfall recorded at HKO during the reporting month was 436.3 mm, which was above the 1981-2010 climatological normal for the same month of 376.5 mm. The heaviest rain fell on 25 and 26 July 2013 when 57.7 and 65.4 mm of rain were recorded respectively at HKO. In addition, between 20 and 45 mm of rain per day was recorded on 1, 7, 14, 15, 17, 19 and 24 July 2013. More generally, at least a trace of rainfall was recorded by HKO on 25 of the 31 days during the reporting month, including all relevant days of turbidity and/or SS exceedance. Amber Rainstorm Warning signal was issued on 7, 14, 15 and 26 July 2013, but no Special Announcement on Flooding in the northern New Territories was issued during the reporting month. Tropical cyclone warning signal was issued on four days during the reporting month. Strong Monsoon Signal was issued on one day.

The heavy and/or persistent rainfall may have caused a large amount of surface runoff from all sources in the vicinity of the open ditch. It is believed that the runoff significantly increased the turbulence and thus resulted in higher turbidity and/or SS inside the ditch water on the days of turbidity and/or SS exceedance. The higher SS induced by the heavy and/or persistent rain may also have resulted in a decrease in DO on some monitoring days.

Also, the site effluent was effectively treated by the AquaSed system and discharged from the site at a low, controlled rate during the reporting month. Furthermore, it is noted that no DO, turbidity or SS exceedance was observed at MP6 (the closest monitoring location to the site discharge point) during the reporting month, and that all pH exceedances recorded at that location were marginally above the Action Level.

Conclusion

As a result, the abovementioned exceedances are unlikely to be due to the construction works and therefore not considered to be related to the project.

4. Ecological Monitoring

4.1 Introduction

This report documents surveys conducted in the Survey Area between 1 and 31 July 2013. The Wetland Restoration Area (WRA) is also surveyed as the area is accessible and site formation works for WRA has been completed. The updated survey transect is provided in Figure 4.1. Dates and ecological surveys conducted during this period are summarised in Appendix H.

4.2 Monitoring of Birds

Monitoring was undertaken following the survey methodology in the EM&A Manual. A transect was followed in the bird surveys (see Figure 4.1). All bird species were identified to species and all bird species of conservation importance and/or wetland dependent were enumerated and recorded to the habitats in which they were observed. Flying birds were not recorded unless they were foraging and/or associated with the habitat (such as swifts). Further, notable bird observations during other surveys were also recorded.

A total of 25 bird species were recorded in the Survey Area (excluding the WRA), 11 of which were species of conservation importance and/or wetland-dependence. Within the WRA, 19 bird species were recorded, 11 of which were species of conservation importance and/or wetland-dependent species, including two of the target species (i.e. Little Egret, Chinese Pond Heron) were recorded. The WRA continues to attract a number of species of conservation importance, including Yellow Bittern, Ixobrychus sinensis. This species is listed by Fellowes et al. as of “Local Concern” in 2002. A summary of survey data is provided in Appendix I.

4.3 Monitoring of Herpetofauna

One night time herpetofauna survey was conducted in the reporting month. No herpetofauna were recorded in the Survey Area (excluding the WRA). One Asian Common Toad was recorded within the WRA. A summary of the survey findings is provided in Appendix J.

4.4 Monitoring of Dragonflies and Butterflies

Monitoring of dragonflies and butterflies were conducted on a bi-weekly basis according to the EM&A Manual. A total of six odonata species were recorded in the Survey Area (excluding the WRA) while four butterfly species were recorded. Within the WRA, a total of ten odonata species were recorded, while three butterfly species were recorded.. A summary of the survey findings is provided in Appendix J.

4.5 Monitoring of Mammals

Monitoring of mammals was conducted concurrently with other surveys. No mammals were recorded in the WRA during regular survey. In additional night search, 20 Pipistrelles, Pipistrellus sp., were recorded within the WRA. No mammals were recorded in the Survey Area in regular survey nor night search. A summary of the survey findings is provided in Appendix J.

4.6 Monitoring of Water Quality

During the reporting period, pH of all Cells reached the Action Level. No measures are proposed at the moment, but the condition will be monitored. Monitoring data are presented in Appendix K.

4.7 Management Activities

4.7.1 Vegetation Management

Removal of exotic vegetation in all cells was undertaken; these included but not limited to Ipomoes sp., Mikania sp., Mimosa sp., Pennisetum sp. and Typha sp..

Vegetation management activities undertaken at the site primarily involved watering of plants, weeding and grass cutting.

4.7.2 Wildlife Management

Removal of Golden Apple Snail was undertaken on an “as-seen” basis.

All sighted Red Fire Ant nests were treated with approved pesticide.

4.8 Summary

Ecological monitoring during July 2013 was carried out according to the survey methodology and frequency outlined in the EM&A Manual.

Summary of survey findings is listed as follows:

Table 4.1: Summary of Ecological Monitoring in WRA and Survey Area

Species	Survey Area (excluding WRA)	WRA
Birds (total)	25	19
Birds (of conservation importance and/or wetland-dependence)	11	11
Amphibians	0	1
Reptiles	0	0
Mammals	0	1
Odonates	6	10
Butterflies	4	3

Survey findings indicate that the ponds within the Survey Area supported numbers and diversity of wetland-dependent birds typical of fish pond areas. The WRA continues to attract wetland dependent fauna and serves as a buffer between the residential portion and the fishponds in the north.

5. Landscape and Visual

5.1 Site Inspections

The EM&A programme for Landscape and Visual impact due to the construction commenced in June 2010 and continued during the reporting period. Site inspections on Landscape and Visual impact were carried out on 12 July and 2 August 2013 to confirm the implementation of mitigation measures at construction stage.

5.2 Construction Phase Audit Summary

The audit was undertaken with references to the specific checklists provided in Tables 2.13 – 2.15 and audit results are summarized as below:

Table 5.1: Construction and Operation Phase Audit Summary

Area of Works	Items to be Monitored
Works Area	The boundaries of the works area have been established on site in accordance with the contract documents and approved plans (EP), and the limit of current heavy construction activity is now confined to within the site hoardings (North side of the site / access road) and the noise barriers (other sides of the site). Minor works such as horticultural maintenance of the planting and transplanted trees, and boundary fence repair was proceeding along the Royal Palms - Palm Springs boundary. No construction works were observed to have exceeded the site boundaries. No construction was carried out at the wetland restoration area after 15 November 2010.
Protection of all trees and woodland blocks to be retained	Trees retained within the site along the northeast boundary, beside wetland restoration area, have been identified and protected by temporary protective fencing.
Streams	The works site is partly encircled by a berm / perimeter channel to intercept surface water and prevent it from washing off into any of the neighboring sites. Surface water is collected within the site in a temporary drainage channel. Gravels beds and barriers have been installed to filter site runoff, sedimentation ponds have been provided to enable primary treatment before discharge to mains drains.
Clearance of existing vegetation	Site clearance was completed prior to the commencement of construction.
Transplanting of trees	Tree transplanting has been completed, with the trees relocated to various points within the planting strip along the southern boundary of the site, outside the noise barrier. The trees continue to re-establish well.
Topsoil stripping	Suitable pond bund and soil material which had been excavated and stockpiled from the original site, has now been re-used within the landscape works Dust suppression measures are active along all internal site access tracks.
New buildings	No new permanent buildings have yet been constructed on site
Boundaries	Hoardings have been erected along most of the boundaries of the site. Installation of new screen fence between the future residential sites and the constructed wetland restoration areas is complete. Fence has been painted green to match with the surrounding vegetated environment.
Noise Barrier	Noise barriers have been installed along the southern and western boundaries of the site in accordance with the contract requirements. Their design complies with the mitigation requirements, with upper 6 to 7m portion of the barrier being made from a translucent material with green tinted (to match with the environment). Supporting GMS structure, likewise, has been painted green.
Night-time lighting	No night-time works were reported to have been carried out during the monitoring period
Landscape and wetland treatments generally	Continuous belt of screen planting along the southern and western boundaries of the site has been completed. The formation, soiling and water control structures of the wetland restoration area have been completed. The wetland areas are being established, with the ponds are being seasonally filled with rain water. Planting of areas around the WRA cells is complete. No construction was carried out at the wetland restoration area after 15 November 2010.
Soiling, etc.	The soiling for the advance planting strip has been completed. The soil placement and grading for each of the wetland restoration areas has been completed.
Plant supply	The plant material used in the Advance Planting Strip and in the WRA are all commonly available species and came from commercial sources. Transplanted reeds (Phragmites australis) at the wetland habitat came from the temporary holding nursery onsite.
Planting	The total number of trees that will reach a minimum of 10m in the advance planting strip meets the contract requirements. The tree species are all from the approved list. This planting should achieve the required screening effect within the required time period. Some of the trees that were identified as dead in previous month or having defects (i.e. extensive bark damage, cavities, fungal growths etc) still need to be replaced with new specimens. Some of the recently planted trees are still in poor condition, but are showing small signs of graduate improvement Seedling trees and shrubs, have been established at the margins of the wetland cells. Some additional fill-in planting has been undertaken.
Establishment Works	The advance planting, the compensatory planting and transplanted trees are generally being maintained by the landscape sub-contractor in accordance with the specification to ensure that the contract requirements are met. Some of the taller trees (e.g. Eucalyptus sp.) that were partially blown over, or growing into the noise barrier structure, have been set upright and supported with rope cables and bamboo stakes, but many trees still need to be rectified. Precautions should be taken to prevent damage to the trees by the structure. Low coverage of some areas of shrubs need to be rectified with further infill shrubs planting. Minor areas of shrubs have been cleared and these need to be replaced. Pruning of tall shrubs (e.g. Ligustrum sinensis) needs to be undertaken regularly. Removal of extensive growth of weeds and invasive climbers in the space behind screen noise barrier has been carried out, but clearance needs to be undertaken on a monthly basis as they may be inhibiting the advance planting. Soil placed in the space behind screen noise barrier has begun to wash down into the advance planting area. Surface water erosion protection of soiled areas is needed to prevent this. Phragmites australis reeds planted along the water edge are growing profusely and are beginning to reduce the extent of other vegetation types. Regular horticultural maintenance (grass cutting, weeding, watering etc.) in the shrubs and tree seedling areas around the WRA cells is being undertaken. The trees / shrubs planted along the northern site boundary are showing seasonal insect infestation again. Growth of shrubs / seedlings on the north side of WRA1 is still unsatisfactory. Some of the trees from outside the site which fell on top of trees in the advance planting strip, have been removed but no rectification of affected trees has been undertaken. Trees T21 and T364 have lost their leader and are no longer viable, so should be removed and replaced. Severe bark damage on lower trunk of T333, extensive bark detachment on T467, and profuse fungal growth on trunk of T292. Trees are irreparably damaged / rotten and should be removed immediately. Branches broken on trees have been pruned away. Workmanship of some pruning works did not comply with proper arboricultural practice resulting in bark tearing. Broken branch noted on tree behind the newly planted shrubs near WRA cell 4. Hanging branch on T266 and should be removed immediately, likewise T20 and T419. Some of the tree tags are too tight and need to be re-set, immediately.

6. Environmental Site Inspection and Audit

6.1 Site Inspection

The ET had carried out construction phase weekly site inspections on 2, 9, 19, 23 and 29 July 2013. All observations have been recorded in the site inspection checklist and passed to the Contractor together with the appropriate recommended mitigation measures where necessary. The key observations from site inspections and associated recommendations are summarized in Table 6.1.

Table 6.1: Summary of Site Inspections and Recommendations

Key Observations	ET Recommendation	Contractor’s Responses / Action(s) Undertaken	Close-out (Date)
Some black liquid was observed on the ground near the vehicle wheel wash. (23 Jul 13)	The contractor was asked to remove and handle the liquid as chemical waste.	Agreed and followed up	Y (29 Jul 13)

6.2 Advice on the Solid and Liquid Waste Management Status

The Contractor has been registered as a chemical waste producer for the Project. Construction and demolition (C&D) material sorting was carried out on site. A sufficient number of receptacles were available for general refuse collection.

As advised by the Contractor, no C&D material was generated on site during the period. 2 kg of metals was generated and collected by registered recycling collector. 2 kg of paper/cardboard packing and 8 kg of plastic were generated on site and collected by registered recycling collector. No chemical waste was generated and collected by licensed chemical waste collector. 60 kg of other types of wastes (e.g. general refuse) was generated on site and disposed of at public landfill facility.

The Contractor is advised to maintain the site waste sorting and recording system and maximize reuse/recycling of C&D wastes.

6.3 Status of Environmental Licenses and Permits

The environmental permits, licenses, and/or notifications on environmental protection for this Project which were valid during the reporting period is summarised in Table 6.2.

Table 6.2: Status of Environmental Submissions, Licenses and Permits

Statutory Reference	Description	Permit/Reference No.	Status
EIAO	Environmental Permit	EP-311/2008/D	Valid
APCO	Notification of Construction Work under APCO	316688 (27 Apr 2010)	Valid
WPCO	Discharge License	WT00007442-2010 (2 Nov 2010)	Valid
WDO	Registration as Chemical Waste Producer	WPN0000-542-H3083-04	Valid
WDO	Bill Account for disposal	700945423	Valid

Legend: EIAO – Environmental Impact Assessment Ordinance

APCO – Air Pollution Control Ordinance

WPCO – Water Pollution Control Ordinance

WDO – Waste Disposal Ordinance

6.4 Recommended Mitigation Measures

The EM&A programme followed the recommended mitigation measures in the EM&A Manual. The EM&A requirements as well as the summary of implementation status of the environmental mitigation measures are provided in Appendix L. In particular, the following mitigation measures were brought to attention during the site audits:

Water Quality

· Effluent should be discharged in accordance with the discharge licence conditions;

· Soil contaminated with chemicals/oils should be removed from site and the voids should be created filled with suitable materials;

· Spillage or leakage of chemical waste should be controlled by using suitable absorbent materials.

7. Report on Non-compliance, Complaints, Notifications of Summons and Successful Prosecutions

7.1 Record on Non-compliance of Action and Limit Levels

There is no breach of Action or Limit Levels for Air Quality and Noise monitoring in the reporting month.

Table 7.1: Summary of Exceedances in Water Quality

Monitoring Date	pH	Dissolved Oxygen (mg/L)	Turbidity (NT)	Suspended Solids (mg/L)
MP3
02/07/2013	7.3	5.4	33.4	24
04/07/2013	7.6	4.3	40.2	37
06/07/2013	7.5	4.1	19.2	15
08/07/2013	7.4	5.0	25.3	23
10/07/2013	7.4	5.3	35.9	36.5
12/07/2013	7.3	5.1	38.4	37.5
15/07/2013	7.3	4.1	57.2	33.5
17/07/2013	7.3	5.3	18.0	15
19/07/2013	7.3	7.0	38.0	29
22/07/2013	7.3	4.1	36.0	31
24/07/2013	7.3	3.7	31.1	26.5
26/07/2013	7.3	3.9	25.5	24.5
29/07/2013	7.6	7.5	19.1	14
31/07/2013	7.6	4.3	39.1	34.5
Action Level	<5.5 or >7.5	<6.85	>64	>65
Limit Level	<4.0 or >8.0	<6.65	>67	>66

MP4
02/07/2013	7.4	4.3	41.9	20.5
04/07/2013	7.5	4.9	18.0	21
06/07/2013	7.5	5.7	17.7	19
08/07/2013	7.5	4.8	26.7	23.5
10/07/2013	7.5	6.2	54.6	56
12/07/2013	7.5	6.1	32.4	38
15/07/2013	7.5	6.4	59.1	67
17/07/2013	7.5	6.3	46.1	33.5
19/07/2013	7.4	4.8	60.7	54
22/07/2013	7.5	4.2	51.1	43
24/07/2013	7.5	4.2	43.1	43.5
26/07/2013	7.5	3.9	59.4	47.5
29/07/2013	7.5	4.4	25.0	20.5
31/07/2013	7.5	5.4	60.8	50
Action Level	<5.5 or >7.5	<3.91	>60	>50
Limit Level	<4.0 or >8.0	<3.82	>64	>53

MP5
02/07/2013	7.4	5.7	27.6	28.5
04/07/2013	7.4	7.8	21.3	28.5
06/07/2013	7.5	7.7	30.6	30
08/07/2013	7.5	10.5	26.4	36.5
10/07/2013	7.5	6.8	28.8	32
12/07/2013	7.6	6.9	26.5	34.5
15/07/2013	7.6	9.7	30.7	74.5
17/07/2013	7.6	7.2	53.3	52
19/07/2013	7.5	7.7	33.2	30
22/07/2013	7.6	5.3	33.9	27.5
24/07/2013	7.5	4.3	28.1	26
26/07/2013	7.6	6.1	80.2	51.5
29/07/2013	7.6	4.7	41.1	38.5
31/07/2013	7.6	7.1	59.3	54
Action Level	<5.5 or >7.5	<4.13	>81	>66
Limit Level	<4.0 or >8.0	<3.87	>84	>69

MP6
02/07/2013	7.5	6.0	31.1	31
04/07/2013	7.4	7.7	32.6	46
06/07/2013	7.5	6.9	16.7	22.5
08/07/2013	7.5	10.6	20.0	19.5
10/07/2013	7.5	8.7	27.1	40
12/07/2013	7.6	8.6	23.9	32.5
15/07/2013	7.6	9.4	49.0	57
17/07/2013	7.6	6.2	62.5	65.5
19/07/2013	7.5	7.0	40.7	31
22/07/2013	7.6	5.6	31.9	22.5
24/07/2013	7.6	5.8	51.0	57.5
26/07/2013	7.6	6.1	86.9	74
29/07/2013	7.6	6.0	42.1	40.5
31/07/2013	7.6	6.7	43.5	40.5
Action Level	<5.5 or >7.5	<4.61	>94	>75
Limit Level	<4.0 or >8.0	<4.52	>96	>75

Notes:

(1) Values Bold indicate Action Level exceedance.

(2) Values Underlined and Bold indicate Limit Level exceedance.

7.2 Record on Environmental Complaints received

No environmental complaint was received during the reporting month.

7.3 Record on Notifications of Summons and Successful Prosecution

No notifications of summons or successful prosecution were received the reporting month.

7.4 Review of Reasons for and Implications of Non-compliance, Complaints, Summons and Prosecutions

Non-compliance

Investigations have been carried out to identify the causes of water quality exceedance.

Complaints, Summons and Prosecutions

Not applicable for this reporting month.

7.5 Follow-up Actions Taken

Non-compliance

As non-compliances have been recorded, the Event and Action Plan has been followed. Although it is considered that the exceedances were not related to the Project, the Contractor was reminded to implement the water quality mitigation measures in accordance with the recommendation stated in Section 5.6.1 – 5.6.4 of the EIA Report as far as practicable and regular spot check would be conducted on the nearby discharge by Contractor and inform ET for investigation.

To cater for the site runoff in wet season, the Contractor has further enhanced the water quality mitigation measures by erecting several segments of rock bunds and installing a barrier at the discharge outlet to desilt and divert site runoff to sedimentation tanks and wastewater treatment facilities (Aquased), which will ensure all site runoff is treated to satisfactory quality before discharging into the northern ditches.

7.6 Cumulative Statistics for Complaints, Notifications of Summons and Successful Prosecutions

Cumulative statistics for complaints, notifications of summons and successful prosecutions for the Project account for period starting from the date of commencement of construction (i.e. 12 May 2010) to the end of the reporting month and are summarized in the Table 7.2 below.

Table 7.2: Statistics for Complaints, Notifications of Summons and Successful Prosecutions

Reporting Period	Cumulative Statistics
	Complaints	Notifications of summons	Successful prosecutions
This reporting month (July 2013)	0	0	0
From 12 May 2010 to end of the reporting month (July 2013)	5	0	0

8. Future Key Issues

8.1 Site Preparatory Works and Construction Works for the Coming Month

The major site works scheduled to be commissioned in the coming month include:

¡ Site Formation

¡ Foundation Work

¡ Superstructure

¡ Pond drainage management in the Wetland Restoration Area (to lower the water level and remove unwanted species in the pond)

8.2 Key Issues for the Coming Month

Key issues to be considered in the coming month include:

¡ Generation of dust from activities on-site during dry weather conditions;

¡ Noise impact from operating equipment and machinery on-site;

¡ Generation and treatment of site surface runoffs and wastewater from activities on-site and during wet weather conditions;

¡ Sorting, recycling, storage and disposal of general refuse and construction waste from activities on-site; and

¡ Management of chemicals and avoidance of oil spillage on-site and to the drainage.

8.3 Monitoring Schedule for the Coming Month

The environmental site inspection and environmental monitoring will be continued in the coming month. Impact monitoring for air, noise, water quality, ecology and landscape and visual in accordance with the approved EM&A Manual has commenced since 12 May 2010. The tentative monitoring schedule for June 2013 is shown in the Table 8.1.

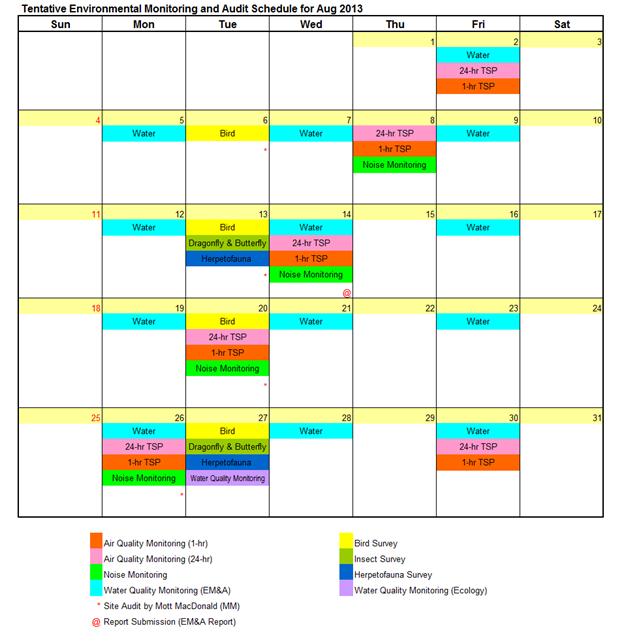

Table 8.1: Tentative Environmental Monitoring and Audit Schedule for August 2013

8.4 Conclusions and Recommendations

8.4.1 Conclusions

The EM&A programme as recommended in the EM&A manual has been undertaken in the reporting month since 12 May 2010.

Monitoring of Air Quality, Noise, Water Quality, Ecology and Landscape and Visual impacts due to the Project was under way. In particular, the 1-hr TSP, 24-hr TSP, noise level (as L_eq) and water quality parameters (such as pH, DO and SS) under monitoring have been checked against established Action and Limit levels.

There was no breach of Action and Limit Levels for 1-hr TSP, 24-hr TSP and noise in the reporting month.

During July 2013, Action/Limit Level exceedances of pH, DO, turbidity and/or SS were observed at MP3 to MP6. Investigations have been carried out to identify the causes of exceedance. From investigation, the Contractor has implemented water quality mitigation measures as recommended in the EIA report. With external factors affecting the adjacent environments, such as natural variations, pond fish culture activities, rainfall and suspected routine dredging works (unrelated to the Project), the exceedances were considered not due to construction works.

8.4.2 Recommendations

With considerations on the construction activities and environment, the following recommendations were provided:

Water Quality

· Effluent should be discharged in accordance with the discharge licence conditions;

· Soil contaminated with chemicals/oils should be removed from site and the voids should be created filled with suitable materials;

· Spillage or leakage of chemical waste should be controlled by using suitable absorbent materials.

Appendix A. Project Organization Chart

Contact information:

Company	Position	Name	Telephone
Heng Shung Construction Co. Ltd.	Assistant Construction Manager	Ms Lynne HUNG	2908 2391
(The Contractor)	Site Agent	Mr MOK Wing Hong	9866 7683
	Environmental Officer	Mr Ricky WONG	9866 7625
ENVIRON Hong Kong Ltd. (Independent Environmental Checker (IEC))	Independent Environmental Checker	Mr David YEUNG	3465 2888
Mott MacDonald Hong Kong Ltd. (Environmental Team (ET))	Environmental Team Leader	Mr Terence KONG	2828 5919

Appendix B. Tentative Construction Programme

Appendix C. Action and Limit Levels for Construction Phase

Air Quality

Action and Limit Levels for 24-hour TSP

Monitoring Station	Action Level (mg/m³)	Limit Level (mg/m³)
ASR1	226	260
ASR2A	213	260
ASR3	205	260
ASR4	237	260

Action and Limit Levels for 1-hour TSP

Monitoring Station	Action Level (mg/m³)	Limit Level (mg/m³)
ASR1	378	500
ASR2A	357	500
ASR3	358	500
ASR4	372	500

Noise

Action and Limit Levels for Construction Noise

Time Period	Action Level	Limit Level
NSR1, NSR3, NSR5, NSR7
0700 – 1900 hours on normal weekdays	When one documented complaint is received from any one of the sensitive receivers	75 dB(A)

Water Quality

Action and Limit Levels for Water Quality

Parameters	DO in mg/L		Turbidity in NTU		SS in mg/L		pH
	Action Level	Limit Level	Action Level	Limit Level	Action Level	Limit Level	Action Level	Limit Level
MP1	1.23	1.17	173	177	231	299	< 5.5 or > 7.5	< 4.0 or > 8.0
MP2	1.04	0.89	132	163	170	209
MP3	6.85	6.65	64	67	65	66
MP4	3.91	3.82	60	64	50	53
MP5	4.13	3.87	81	84	66	69
MP6	4.61	4.52	94	96	75	75

Appendix D. Event and Action Plan for Air Quality, Noise, Water Quality, Ecology and Landscape & Visual

Air Quality

Event	Action
Event	ET Leader	IEC	ER	Contractor
Action Level
1. Exceedance for one sample	1. Identify source, investigate the causes of exceedance and propose remedial measures. 2. Inform IEC and ER. 3. Repeat measurement to confirm finding. 4. Increase monitoring frequency to daily.	1. Check monitoring data submitted by ET. 2. Check Contractor’s working method.	1. Notify Contractor.	1. Rectify any unacceptable practice. 2. Amend working methods if appropriate.
2. Exceedance for two or more consecutive samples	1. Identify the source. 2. Inform IEC and ER. 3. Advise ER on the effectiveness of the proposed remedial measures 4. Repeat measurements to confirm findings. 5. Increase monitoring frequency to daily. 6. Discuss with IEC and the Contractor on remedial actions required. 7. If exceedance continues, arrange meeting with IEC and ER. 8. If exceedance stops, cease additional monitoring.	1. Check monitoring data submitted by ET. 2. Check the Contractor’s working method. 3. Discuss with ET Leader and the Contractor on possible remedial measures. 4. Advise ER on the effectiveness of the proposed remedial measures. 5. Supervise implementation of remedial measures.	1. Confirm receipt of notification of exceedance in writing. 2. Notify the Contractor. 3. Ensure remedial measures properly implemented.	1. Submit proposals for remedial actions to IEC within 3 working days of notification. 2. Implement the agreed proposals. 3. Amend proposal if appropriate.
Limit Level
1. Exceedance for one sample	1. Identify source, investigate the causes of exceedance and propose remedial measures. 2. Inform ER and EPD. 3. Repeat measurement to confirm finding. 4. Increase monitoring frequency to daily. 5. Assess effectiveness of Contractor’s remedial actions and keep IEC, EPD and ER informed of the results.	1. Check monitoring data submitted by ET. 2. Check the Contractor’s working method. 3. Discuss with ET Leader and the Contractor on possible remedial measures. 4. Advise ER on the effectiveness of the proposed remedial measures. 5. Supervise implementation of remedial measures.	1. Confirm receipt of notification of exceedance in writing. 2. Notify the Contractor. 3. Ensure remedial measures properly implemented.	1. Take immediate action to avoid further exceedance. 2. Submit proposals for remedial actions to IEC within 3 working days of notification. 3. Implement the agreed proposals. 4. Amend proposal if appropriate.
2. Exceedance for two or more consecutive samples	1. Notify IEC, ER, EPD and the Contractor. 2. Identify the source. 3. Repeat measurements to confirm findings. 4. Increase monitoring frequency to daily. 5. Carry out analysis of the Contractor’s working procedures to determine possible mitigation to be implemented. 6. Arrange meeting IEC and ER to discuss the remedial actions to be taken. 7. Assess effectiveness of the Contractor’s remedial actions and keep IEC, EPD and ER informed of the results. 8. If exceedance stops, cease additional monitoring.	1. Discuss amongst ER, ET Leader and the Contractor on the potential remedial actions. 2. Review the Contractor’s remedial actions whenever necessary and advise ER accordingly. 3. Supervise the implementation of remedial measures.	1. Confirm receipt of notification of exceedance in writing. 2. Notify the Contractor. 3. In consultation with IEC, agree with the remedial measures to be implemented. 4. Ensure remedial measures are properly implemented. 5. If exceedance continues, consider what activity of the work is responsible and instruct the Contractor to stop that activity of work until the exceedance is abated.	1. Take immediate action to avoid further exceedance. 2. Submit proposals for remedial actions to IEC within 3 working days of notification. 3. Implement the agreed proposals. 4. Resubmit proposals if problem still not under control. 5. Stop the relevant activity of works as determined by ER until the exceedance is abated.

Construction Noise

Event	Action
Event	ET Leader	IEC	ER	Contractor
Action Level	1. Notify IEC and the Contractor. 2. Carry out investigation. 3. Report the results of investigation to IEC and the Contractor. 4. Discuss with the Contractor and formulate remedial measures. 5. Increase monitoring frequency to check mitigation measures.	1. Review with analysed results submitted by ET. 2. Review the proposed remedial measures by the Contractor and advise ER accordingly. 3. Supervise the implement of remedial measures.	1. Confirm receipt of notification of exceedance in writing. 2. Notify the Contractor. 3. Require the Contractor to propose remedial measures for the analysed noise problem. 4. Ensure remedial measures are properly implemented.	1. Submit noise mitigation proposals to IEC. 2. Implement noise mitigation proposals.
Limit Level	1. Identify the source. 2. Notify IEC, ER, EPD and the Contractor. 3. Repeat measurement to confirm findings. 4. Increase monitoring frequency. 5. Carry out analysis of Contractor’s working procedures to determine possible mitigation to be implemented. 6. Inform IEC, ER, and EPD the causes & actions taken for the exceedances. 7. Assess effectiveness of the Contractor’s remedial actions and keep IEC, EPD and ER informed of the results. 8. If exceedance stops, cease additional monitoring.	1. Discuss amongst ER, ET Leader and the Contractor on the potential remedial actions. 2. Review the Contractor’s remedial actions whenever necessary to assure their effectiveness and advise ER accordingly. 3. Supervise the implementation of remedial measures.	1. Confirm receipt of notification of exceedance in writing. 2. Notify the Contractor. 3. Require the Contractor to propose remedial measures for the analysed noise problem. 4. Ensure remedial measures are properly implemented. 5. If exceedance continues, consider what activity of the work is responsible and instruct the Contractor to stop that activity of work until the exceedance is abated.	1. Take immediate action to avoid further exceedance. 2. Submit proposals for remedial actions to IEC within 3 working days of notification. 3. Implement the agreed proposals. 4. Resubmit proposals if problem still not under control. 5. Stop the relevant activity of works as determined by the ER until the exceedance is abated.

Water Quality

Event	Action
Event	ET Leader	IEC	ER	Contractor
Action Level
1. Exceedance for one sample	1. Repeat in-situ measurement to confirm finding; 2. Identify source(s) of impact; 3. Inform IEC and Contractor; 4. Check monitoring data, all plant, equipment and Contractor’s working methods; 5. Discuss mitigation measures with IEC and Contractor; and 6. Repeat measurement on next day of exceedance.	1. Discuss with ET and Contractor on the mitigation measures; 2. Review proposals on mitigation measures submitted by Contractor and advise the ER accordingly; and 3. Assess the effectiveness of the implemented mitigation measures.	1. Discuss with IEC on the proposed mitigation measures; and 2. Make agreement on the mitigation measures to be implemented.	1. Inform the ER and confirm notification of the non-compliance in writing; 2. Rectify unacceptable practice; 3. Check all plant and equipment; 4. Consider changes of working methods; 5. Discuss with ET and IEC and propose mitigation measures to IEC and ER; and 6. Implement the agreed mitigation measures.
2. Exceedance for two or more consecutive samples	1. Repeat in-situ measurement to confirm finding; 2. Identify source(s) of impact; 3. Inform IEC and Contractor; 4. Check monitoring data, all plant, equipment and Contractor’s working methods; 5. Discuss mitigation measures with IEC and Contractor; 6. Ensure mitigation measures are implemented; 7. Prepare to increase the monitoring frequency to daily; and 8. Repeat measurement on next day of exceedance.	1. Discuss with ET and Contractor on the mitigation measures; 2. Review proposals on mitigation measures submitted by Contractor and advise the ER accordingly; and 3. Assess the effectiveness of the implemented mitigation measures.	1. Discuss with IEC on the proposed mitigation measures; 2. Make agreement on the mitigation measures to be implemented; and 3. Assess the effectiveness of the implemented mitigation measures.	1. Inform the Engineer and confirm notification of the non-compliance in writing; 2. Rectify unacceptable practice; 3. Check all plant and equipment; 4. Consider changes of working methods; 5. Discuss with ET and IEC and propose mitigation measures to IEC and ER within 3 working days; and 6. Implement the agreed mitigation measures.
Limit Level
1. Exceedance for one sample	1. Repeat in-situ measurement to confirm finding; 2. Identify source(s) of impact; 3. Inform IEC, Contractor and EPD; 4. Check monitoring data, all plant, equipment and Contractor’s working methods; 5. Discuss mitigation measures with IEC, ER and Contractor; 6. Ensure mitigation measures are implemented; and 7. Increase the monitoring frequency to daily until no exceedance of Limit level.	1. Discuss with ET and Contractor on the mitigation measures; 2. Review proposals on mitigation measures submitted by Contractor and advise the ER accordingly; and 3. Assess the effectiveness of the implemented mitigation measures.	1. Discuss with IEC, ET and Contractor on the proposed mitigation measures; and 2. Request Contractor to critically review the working methods; 3. Make agreement on the mitigation measures to be implemented; and 4. Assess the effectiveness of the implemented mitigation measures.	1. Inform the Engineer and confirm notification of the non-compliance in writing; 2. Rectify unacceptable practice; 3. Check all plant and equipment; 4. Consider changes of working methods; 5. Discuss with ET and IEC and ER and propose mitigation measures to IEC and ER within 3 working days; and 6. Implement the agreed mitigation measures.
2. Exceedance for two or more consecutive samples	1. Repeat in-situ measurement to confirm finding; 2. Identify source(s) of impact; 3. Inform IEC, Contractor and EPD; 4. Check monitoring data, all plant, equipment and Contractor’s working methods; 5. Discuss mitigation measures with IEC, ER and Contractor; 6. Ensure mitigation measures are implemented; and 7. Increase the monitoring frequency to daily until no exceedance of Limit level for two consecutive days.	1. Discuss with ET and Contractor on the mitigation measures; 2. Review proposals on mitigation measures submitted by Contractor and advise the ER accordingly; and 3. Assess the effectiveness of the implemented mitigation measures.	1. Discuss with IEC, ET and Contractor on the proposed mitigation measures; and 2. Request Contractor to critically review the working methods; 3. Make agreement on the mitigation measures to be implemented; 4. Assess the effectiveness of the implemented mitigation measures; and 5. Consider and instruct, if necessary, the Contractor to slow down or to stop all or part of the marine work until no exceedance of Limit Level.	1. Inform the ER and confirm notification of the non-compliance in writing; 2. Rectify unacceptable practice; 3. Check all plant and equipment; 4. Consider changes of working methods; 5. Discuss with ET and IEC and ER and propose mitigation measures to IEC and ER within 3 working days; 6. Implement the agreed mitigation measures; and 7. As directed by the Engineer, to slow down or to stop all or part of the marine work or construction activities.

Appendix E. Calibration certificates

Appendix F. Graphical plots of the monitoring results

Appendix G. Weather conditions during the monitoring period

Appendix H. Ecological Monitoring conducted

July 2013	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
Mammals			ü						ü
Birds			ü						ü
Herpetofauna			ü						ü
Dragonflies & butterflies									ü
Water Quality
Inspection Visits			ü		ü				ü			ü

July 2013	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30	31
Mammals	ü							ü							ü
Birds	ü							ü							ü
Herpetofauna
Dragonflies & butterflies								ü
Water Quality							ü
Inspection Visits	ü							ü			ü				ü

Note: Light grey cells indicate public holidays, Saturdays or Sundays.

Appendix I. Summary of Bird Surveys conducted

Table I1. Summary of bird species of conservation importance and/or wetland-dependence recorded in the Survey Area (excluding the WRA)

Species Name⁽⁵⁾	Scientific Name⁽⁵⁾	Conservation Status ⁽²⁾	July 2013
Species Name⁽⁵⁾	Scientific Name⁽⁵⁾	Conservation Status ⁽²⁾	Occurrence⁽³⁾	Mean⁽⁴⁾
Little Grebe	Tachybaptus ruficollis	LC, (1)	4	3.8
Great Egret	Egretta alba	PRC, (RC), (1)	5	12.4
Little Egret	Egretta garzetta	PRC, (RC), (1)	5	10.0
Chinese Pond Heron	Ardeola bacchus	PRC, (RC), (1)	5	10.6
Black-crowned Night Heron	Nycticorax nycticorax	(LC), (1)	5	3.0
White-breasted Waterhen	Amaurornis phoenicurus	(1)	3	1.6
White-throated Kingfisher	Halcyon smyrnensis	LC, (1)	1	0.4
Common Kingfisher	Alcedo atthis	(1)	4	1.2
White Wagtail	Motacilla alba	(1)	3	2.2
White-shouldered Starling	Sturnus sinensis	(LC), (1)	2	0.6
Collared Crow	Corvus torquatus	LC, (1)	1	0.6
No. of Species Recorded			11

(1) Indicates wetland-dependant or wetland-associated species.

(2) Conservation status follows that of Fellowes et al. (2002) and BirdLife International listing (2011).

(3) Indicates number of surveys recorded within the reporting period.

(4) Refers to the mean number of individuals recorded in the reporting period (excluding the WRA)

(5) Follows HK bird list (dated 2013-2-25).

Table I2. Summary of bird species of conservation importance and/or wetland-dependence recorded in the WRA

Species Name⁽⁵⁾	Scientific Name⁽⁵⁾	Conservation Status ⁽²⁾	July 2013		Records Outside Surveys
Species Name⁽⁵⁾	Scientific Name⁽⁵⁾	Conservation Status ⁽²⁾	Occurrence⁽³⁾	Mean⁽⁴⁾	Records Outside Surveys
Great Egret	Egretta alba	PRC, (RC), (1)	2	0.6	ü
Little Egret	Egretta garzetta	PRC, (RC), (1)	2	0.4	ü
Chinese Pond Heron	Ardeola bacchus	PRC, (RC), (1)	3	0.8
Yellow Bittern	Ixobrychus sinensis	LC, (1)	1	0.2	ü
White-breasted Waterhen	Amaurornis phoenicurus	(1)	1	0.2	ü
Black-winged Stilt	Himantopus himantopus	(RC), (1)	1	0.2
Kentish Plover	Charadrius alexandrinus	(RC), (1)	1	0.8
Common Sandpiper	Actitis hypoleucos	(1)	-	-	ü
Common Kingfisher	Alcedo atthis	(1)	2	0.4	ü
White Wagtail	Motacilla alba	(1)	3	1.2
White-shouldered Starling	Sturnus sinensis	(LC), (1)	1	0.2
No. of Species Recorded			11

(1) Indicates wetland-dependant or wetland-associated species.

(2) Conservation status follows that of Fellowes et al. (2002) and BirdLife International listing (2011).

(3) Indicates number of surveys recorded within the reporting period.

(4) Refers to the mean number of individuals recorded in the reporting period at WRA.

(5) Follows HK bird list (dated 2013-02-25).

Appendix J. Summary of Herpetofauna, Mammal and Insect Surveys conducted

Table J1. Summary of herpetofauna monitoring in the Survey Area (excluding the WRA)

Species Name	Scientific Name	Conservation Status⁽¹⁾	July 2013
Species Name	Scientific Name	Conservation Status⁽¹⁾	Occurrence⁽²⁾	Mean⁽³⁾
Amphibian	No. of	Species Recorded	0
(No records in July 2013)
			Occurrence⁽²⁾	Mean⁽³⁾
Reptile	No. of	Species Recorded	0
(No records in July 2013)

(1) Conservation status follows that of Fellowes et al. (2002), Chan et al. (2005) and Karsen et al. (1998).
